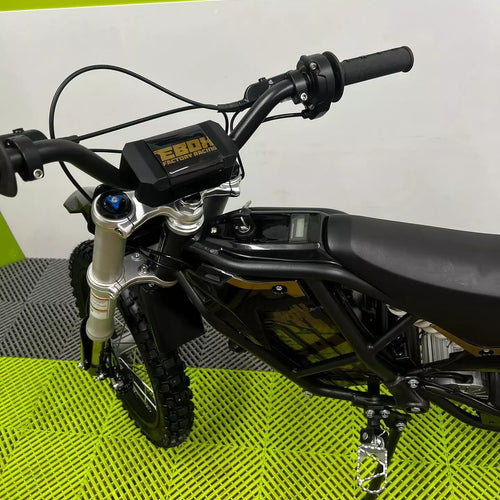

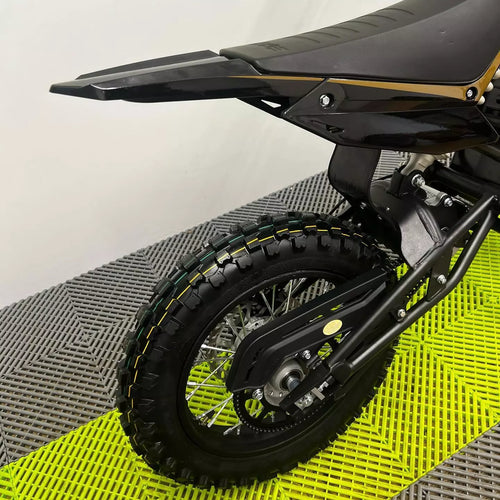

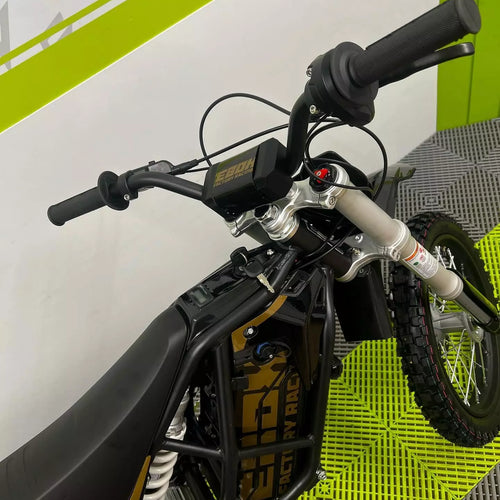

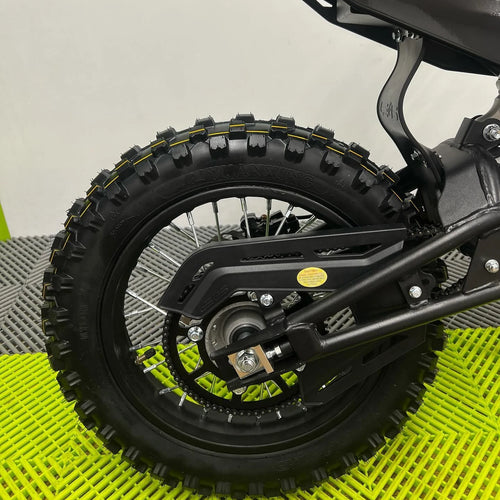

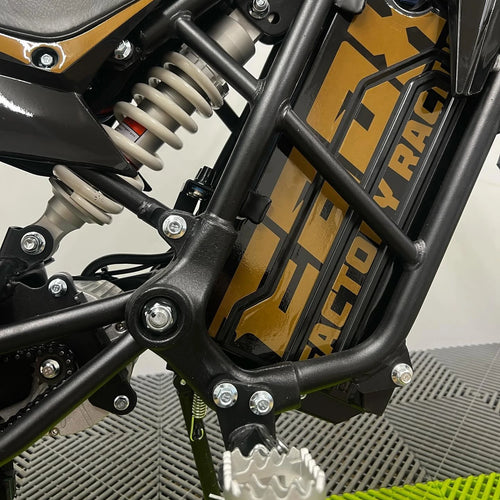

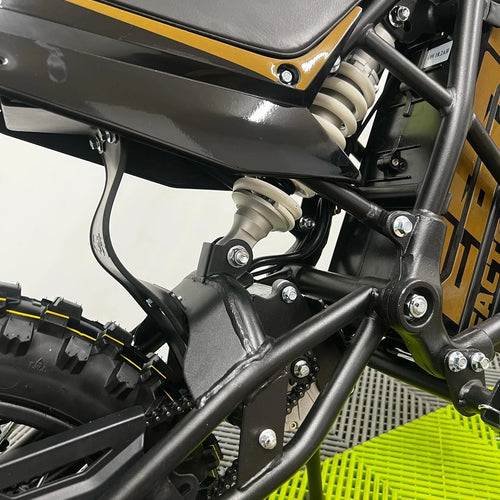

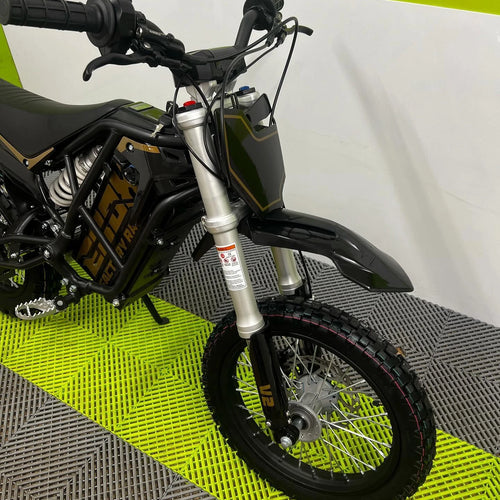

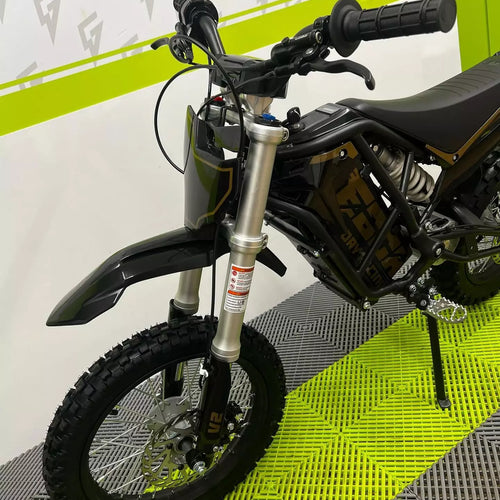

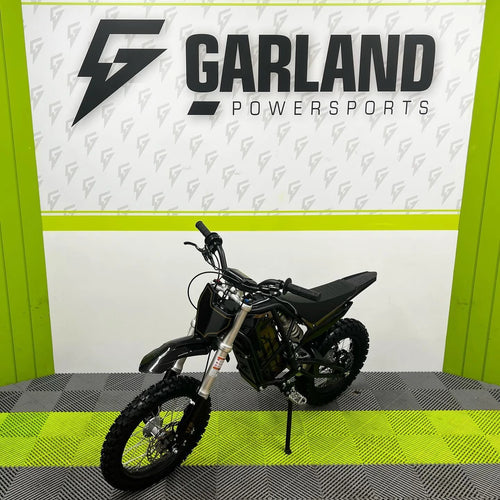

EBOX 2 V2 2.0KW Black Electric Offroad Minibike - PRE-ORDER

• Description

  EBOX - Electric Bike Off-road Motocross

  Not content with the performance from the over-boosted 1.6 kw EBOX1, we decided to tweak the chassis and install an over-boosted 2 kw rated powertrain that peaks at over 3 kw! (As tested and reviewed by Suronster on YouTube). These modifications catapult the EBOX2 into electric pit bike class leading territory.

  Featuring extended upside-down forks and 14/12 wheels, the chassis is now suitable for slightly larger (or crazier) riders.  **We recommend considering some BMX style bars or pro taper minibike bars if you are a taller rider.

  Created by our engineers and designers to be lightweight, powerful and outperform any other bike in its class on the market. 

  EBOX2 features a 2 KW lithium battery / brushless motor combination that packs an astonishing punch. EBOX2 can be controlled to perfection, dialled down for entry level riding, and turned up when you are ready to clear those doubles or pop the front wheel up for some combo practise.

  Need more?. As proven by Surronster, this bike can be tuned to release even more power from the stock powertrain with a simple controller upgrade. (please note this upgrade is not currently warranty approved).

  SPECS

  Frame type	Double Cradle
  Front wheel size	14"
  Rear wheel size	12"
  Front brake	Hydraulic Disc
  Front disc	180mm
  Rear brake	Hydraulic Disc
  Rear disc	180mm
  Front tyre	14" x 2.27"
  Rear tyre	12" x 3"
  Chain	219H
  Gearing	Front 10T, Rear 70T
  Max load	85kg
  Fork type	USD
  Shock type	Mono shock
  Handlebar	Alloy
  Motor voltage	60V
  Peak power	2.0KW (2.6hp)
  Max RPM	4,400
  Battery	60V 18.2Ah Lithium
  Controller output	42A
  Charger	AC 110-240V, Output: 54.6V, 2A



  Tech

  Charge time	5-6 hours
  Range per charge	21 - 24 Miles
  Top speed	32 MPH
  External adjustability	Top speed, Acceleration
  Frame construction	High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension
  Wheelbase	945mm
  Ground clearance	275mm
  Seat height	66cm
  Weight	42.5kg




• Delivery & Returns

  Delivery:

  We can deliver nationwide, please contact us for a quote. We offer full assembly when PDI & Warranty Registration option is taken up, or we can send the bike in a crate. Please see warranty specs for more information on the PDI.

  Warranty Coverage:
  6 months parts warranty commencing from the original retail purchase date. Given that the bike is delivered in a crate, warranty is ONLY valid when a customer chooses for full assembly and PDI (Pre-Delivery Inspection). Warranty Registration & PDI fee is £60.


  Failure to adhere to this prerequisite will result in the nullification of the warranty associated with the bike.

  If PDI is completed, Stomp extends the following warranty coverage for electric bike
  components:

  1, Battery:
  Coverage: 6 months from the date of purchase.
  Stomp guarantees the battery, encompassing any defects in materials and workmanship. In the event of battery failure within the stipulated warranty period, a replacement will be provided (All depleted batteries should be returned to Stomp for recycling). Diagnosis of a fault must be conducted by an authorized EBOX dealer.
  Batteries will not be eligible for coverage if brake kill switches are removed or if the instructions
  outlined in the EBOX user manual are not adhered to.

  Specifically, during periods of vehicle inactivity, it is essential to recharge the battery at least
  once a month until regular use is reinstated. Failure to turn off the power switch or neglecting to charge the product for an extended duration may result in the battery reaching a state where it is unable to retain a charge.


  2. Motor, Controller, and Other Components:
  Coverage: 6 months from the date of purchase.
  Stomp provides a warranty for the motor, controller, and all other electric bike components, excluding wear and tear parts. This warranty covers defects in materials and workmanship. In the event of a failure of any of these components within the specified warranty period, replacement parts will be sent to be fitted by a qualified mechanic.

  Warranty invalid if EBOX modified or upgraded in any way. This includes but not exclusive to:

  -Disconnecting brake switches
  -Bypassing BMS
  -Battery voltage changes or battery changes
  -Motor/controller changes
  -Other electrical modifications
  -Mechanical hardware changes suspension etc.

  Exclusions: This warranty does not cover the following wear and tear parts unless there is a factory defect:
  • Tyres
  • Brake pads
  • Brake discs
  • Chain
  • Sprocket
  • Plastics
  • Wheels
  • Bearings
  • Suspension
  • Grips
  • Seat
  Damage caused by water exposure, including but not limited to submersion, immersion, or
  exposure to excessive moisture, is explicitly excluded from warranty coverage. This includes
  damage resulting from riding in heavy rain, submergence in bodies of water, or exposure to
  water during cleaning or maintenance.
