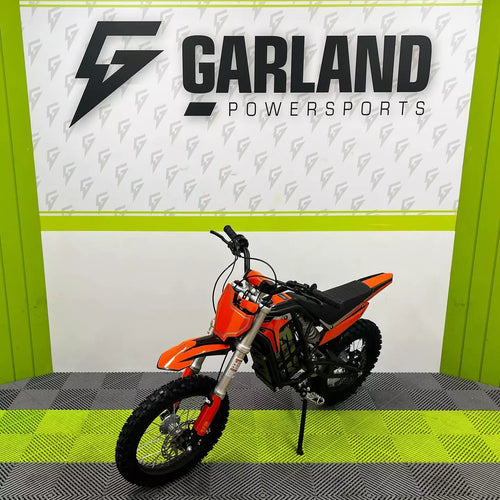

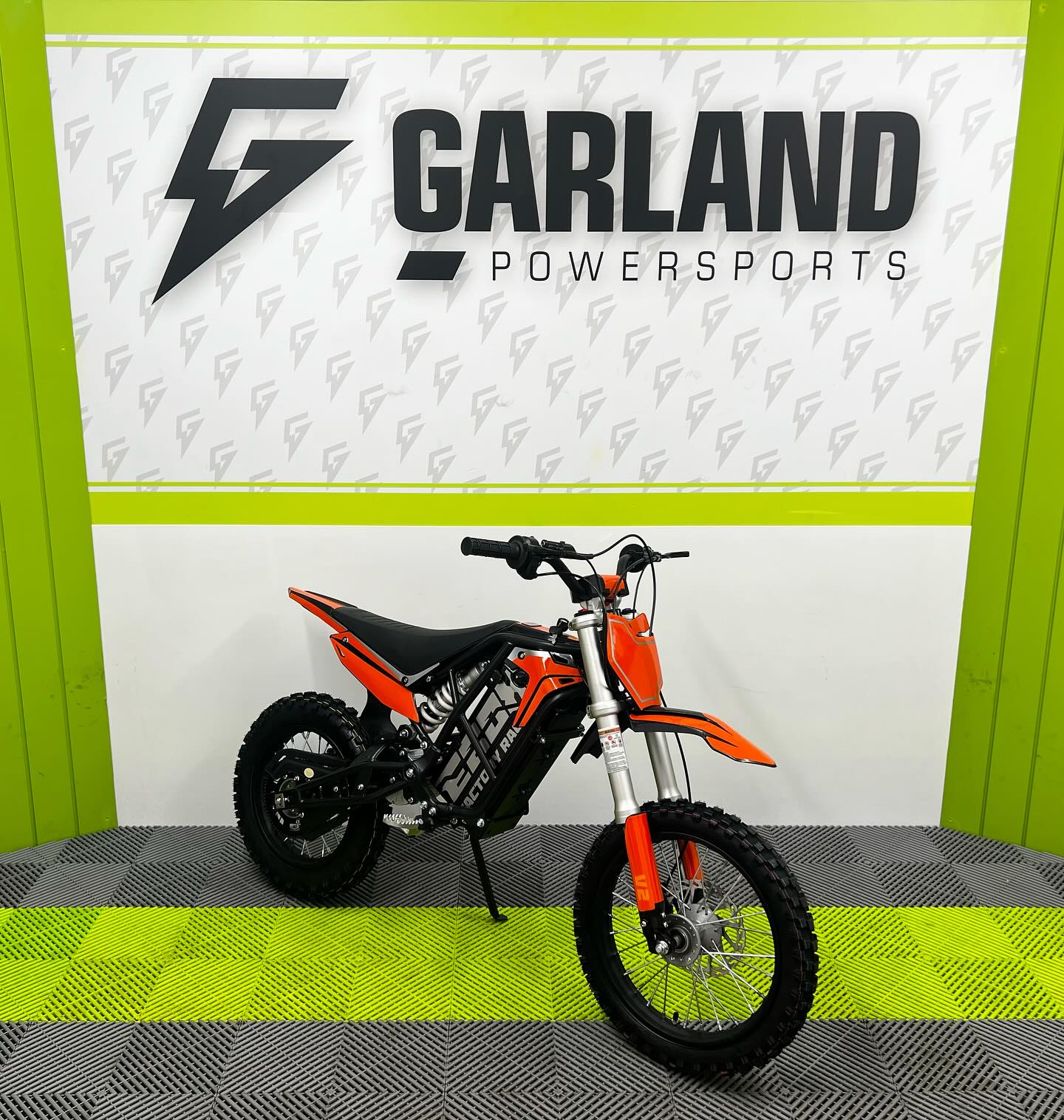

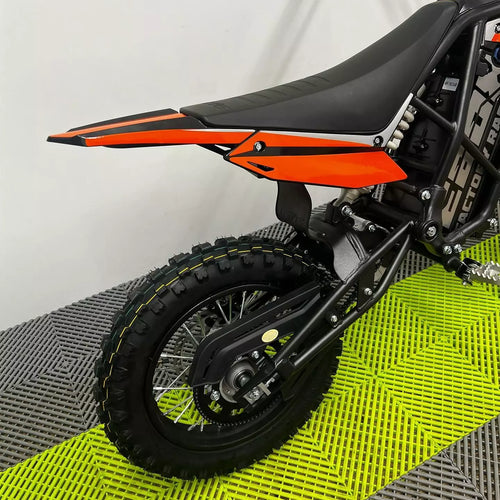

EBOX 2 V2 2.0KW Orange Electric Offroad Bike

• Description

  EBOX - Electric Bike Off-road Motocross

  Not content with the performance from the over-boosted 1.6 kw EBOX1, we decided to tweak the chassis and install an over-boosted 2 kw rated powertrain that peaks at over 3 kw! (As tested and reviewed by Suronster on YouTube). These modifications catapult the EBOX2 into electric pit bike class leading territory.

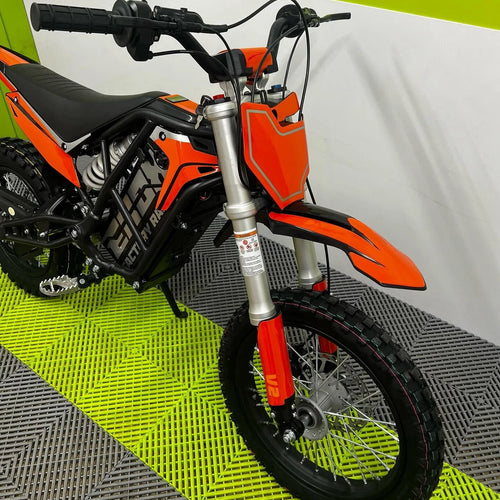

  Featuring extended upside-down forks and 14/12 wheels, the chassis is now suitable for slightly larger (or crazier) riders.  **We recommend considering some BMX style bars or pro taper minibike bars if you are a taller rider.

  Created by our engineers and designers to be lightweight, powerful and outperform any other bike in its class on the market. 

  EBOX2 features a 2 KW lithium battery / brushless motor combination that packs an astonishing punch. EBOX2 can be controlled to perfection, dialled down for entry level riding, and turned up when you are ready to clear those doubles or pop the front wheel up for some combo practise.

  Need more?. As proven by Surronster, this bike can be tuned to release even more power from the stock powertrain with a simple controller upgrade. (please note this upgrade is not currently warranty approved).

  SPECS

  Frame type	Double Cradle
  Front wheel size	14"
  Rear wheel size	12"
  Front brake	Hydraulic Disc
  Front disc	180mm

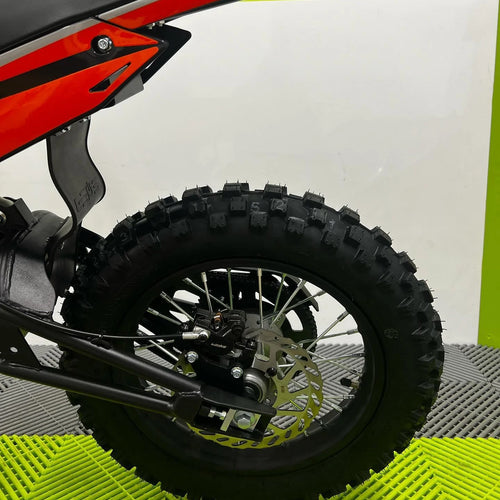

  Rear brake	Hydraulic Disc
  Rear disc	180mm
  Front tyre	14" x 2.27"

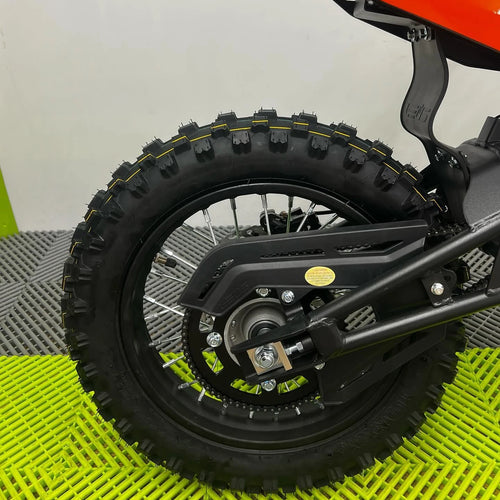

  Rear tyre	12" x 3"
  Chain	219H
  Gearing	Front 10T, Rear 70T
  Max load	85kg
  Fork type	USD

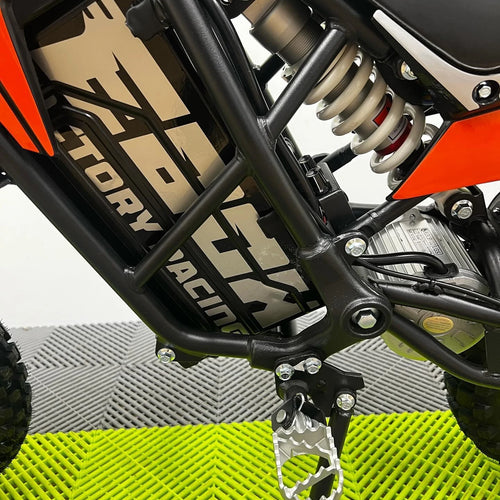

  Shock type	Mono shock

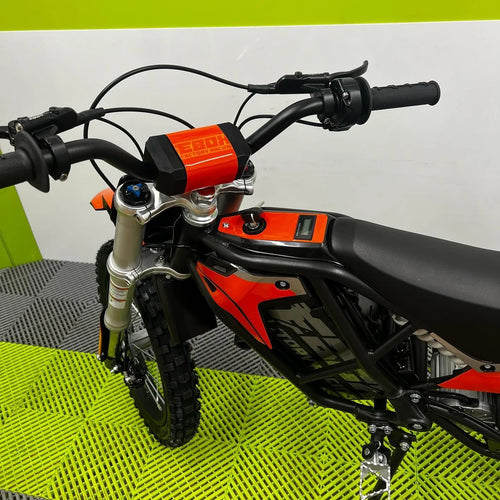

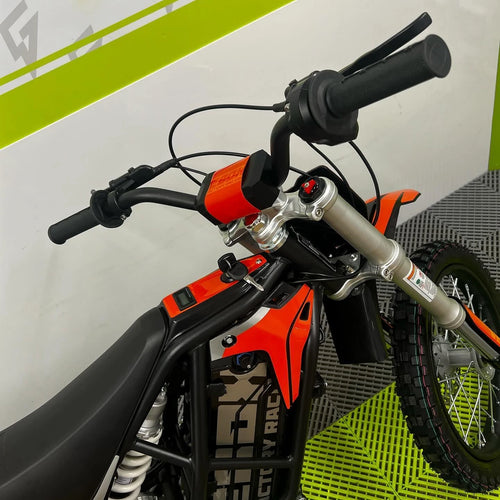

  Handlebar	Alloy
  Motor voltage	60V
  Peak power	2.0KW (2.6hp)
  Max RPM	4,400
  Battery	60V 18.2Ah Lithium
  Controller output	42A
  Charger	AC 110-240V, Output: 54.6V, 2A



  Tech

  Charge time	5-6 hours
  Range per charge	21 - 24 Miles
  Top speed	32 MPH
  External adjustability	Top speed, Acceleration
  Frame construction	High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension
  Wheelbase	945mm
  Ground clearance	275mm
  Seat height	66cm
  Weight	42.5kg




• Delivery & Returns

  Delivery:

  We deliver nationwide. Customers have 30 days from when an item arrives to return a purchase to us. All items must be returned in new/unused condition and in original packaging.

  6 Month Manufacturing Defect Warranty (Excludes Consumable Items*). Limitations – Any modification, use of noncertified accessories, water ingress, misuse or incorrect assembly, maintenance or parts installation, or collision damage, will invalidate the warranty. Commercial use is prohibited.

  Warranty invalid if EBOX modified or upgraded in any way. This includes but not exclusive to:

  -Disconnecting brake switches
  -Bypassing BMS
  -Battery voltage changes or battery changes
  -Motor/controller changes
  -Other electrical modifications
  -Mechanical hardware changes suspension etc.

  Exclusions: This warranty does not cover the following wear and tear parts unless there is a factory defect:
  • Tyres
  • Brake pads
  • Brake discs
  • Chain
  • Sprocket
  • Plastics
  • Wheels
  • Bearings
  • Suspension
  • Grips
  • Seat
